Description
The company styles and develops a large vary of automobile parking lifts that square measure fancied exploitation best staple, sourced from reliable vendors across the worldwide, and tested on varied quality parameters. These is custom-built as per the specifications of the shoppers and delivered among a stipulated time-frame.

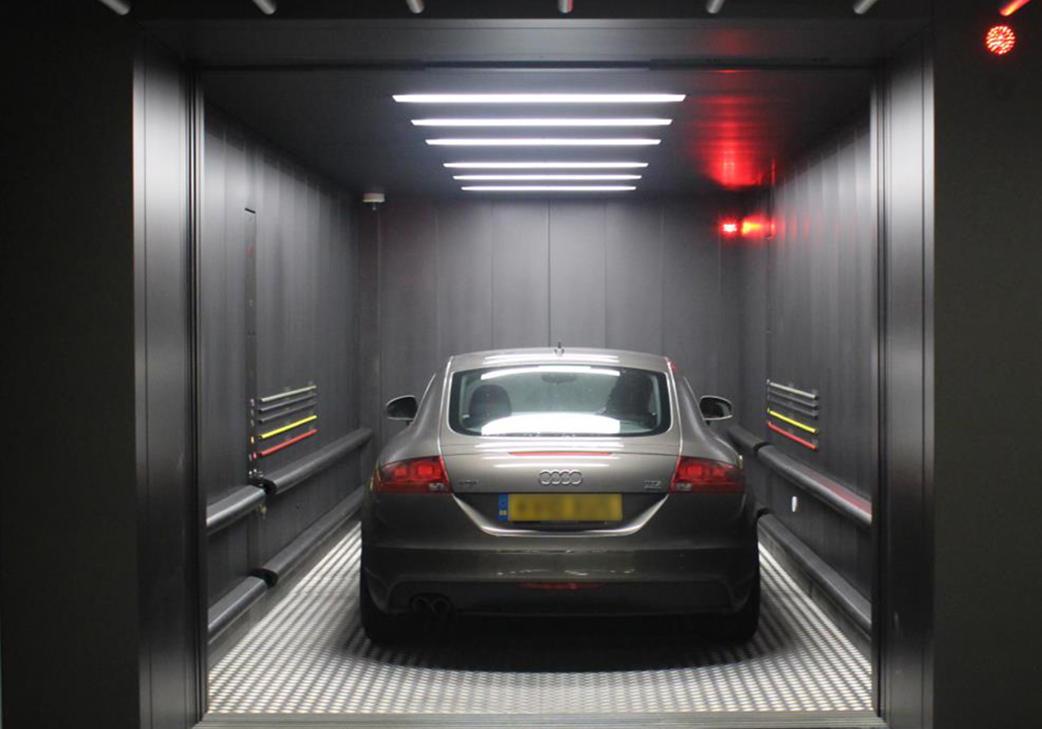

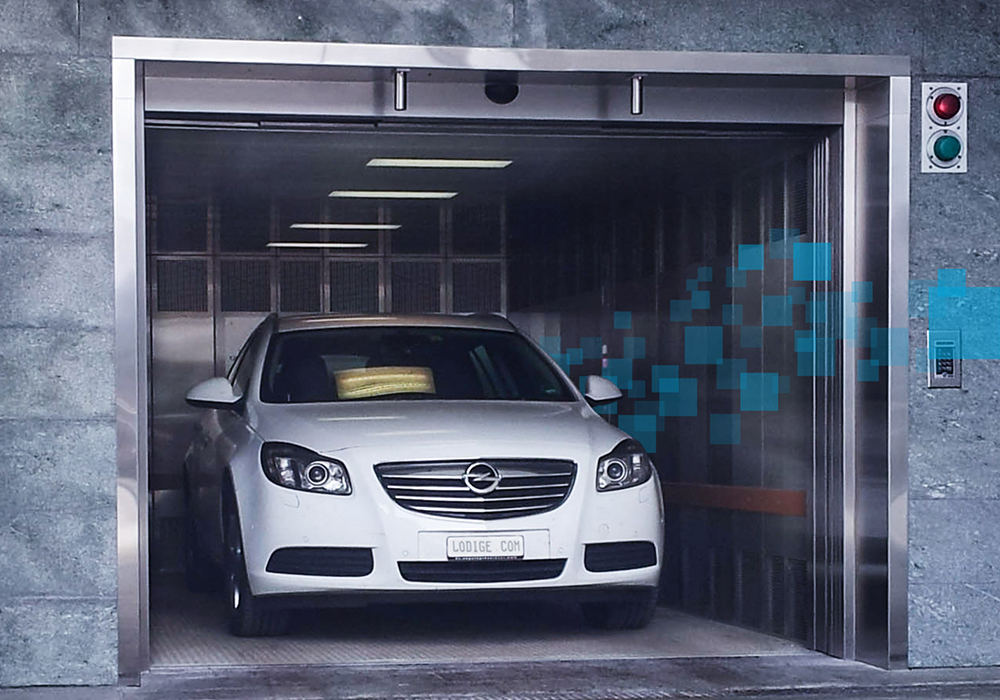

Car elevators area unit immaculately designed to hold the load and largeness to accommodate the varied size of cars accessible within the market. exactitude in style and safety area unit the predominate and requirement whereas planning automobile elevators. Evolve automobile elevators go along with each, single facet and 2 facet gap possibility. Please raise Evolve sales person for numerous nonobligatory featues for automobile elevators.
| SPEED MPS | LOAD | LIFT WELL WXD | PLATFORM WXD | CAR INSIDE WXD | ENTRAN- ANCE CENTER-PANEL |
OPENING | MACHINE ROOM (WIDTH) | MACHINE ROOM (DEPTH) | PIT | OVER HEAD (Min.) | CAR INSIDE SQ.MTR. | |||
| MPS | K.G. | W | D | W | D | W | D | W | W | D | ||||
| 0.5 | 3000KG | 4300 | 6350 | 3200 | 6000 | 3140 | 5840 | 2500 | SINGLE SIDE | 7000 | 8300 | 2000 | 5000 | 18.34 |
| 0.5 | 3000KG | 4300 | 6550 | 3200 | 6150 | 3140 | 5840 | 2500 | BOTH SIDE | 7000 | 8300 | 2000 | 5000 | 18.34 |
